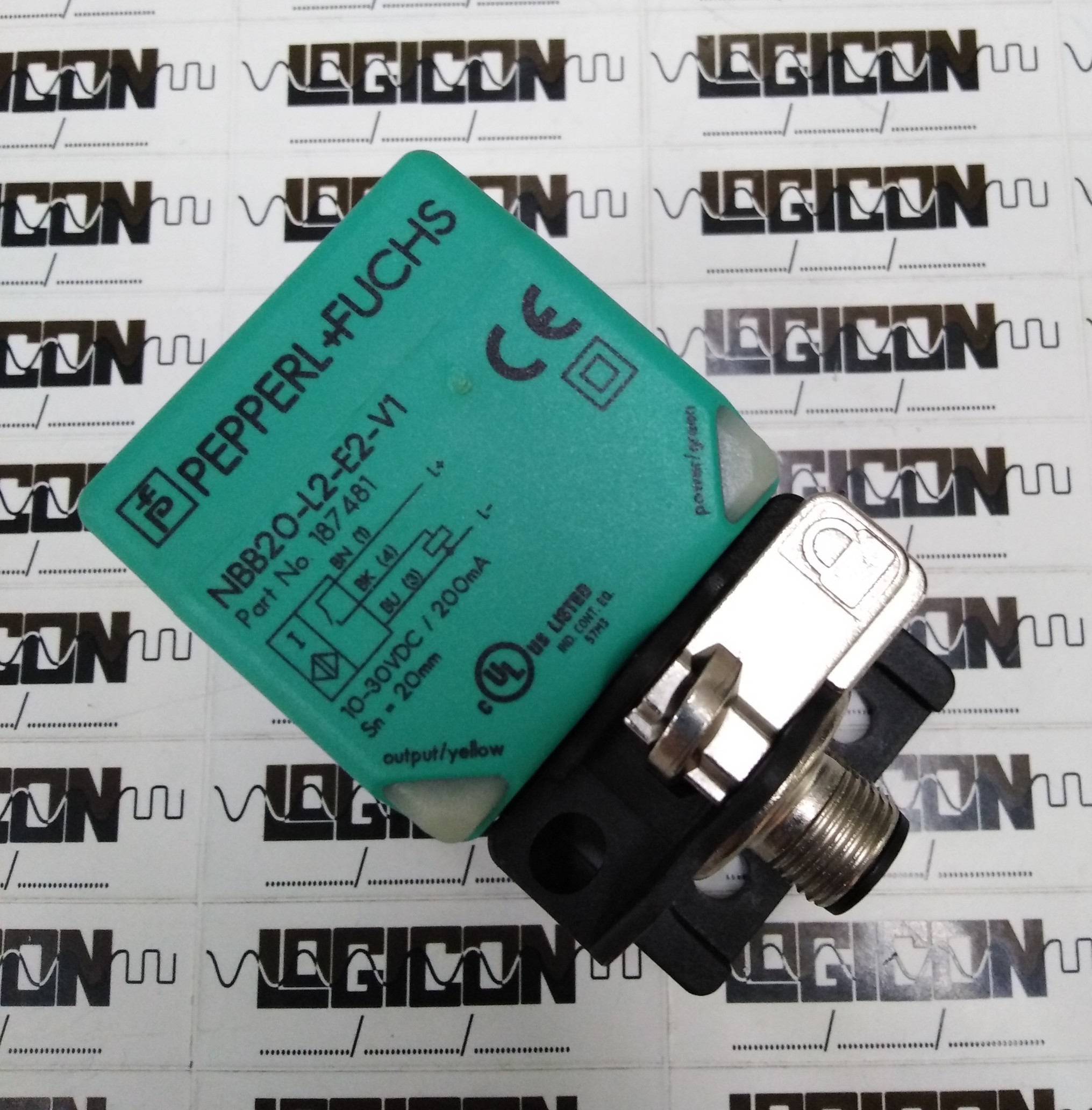

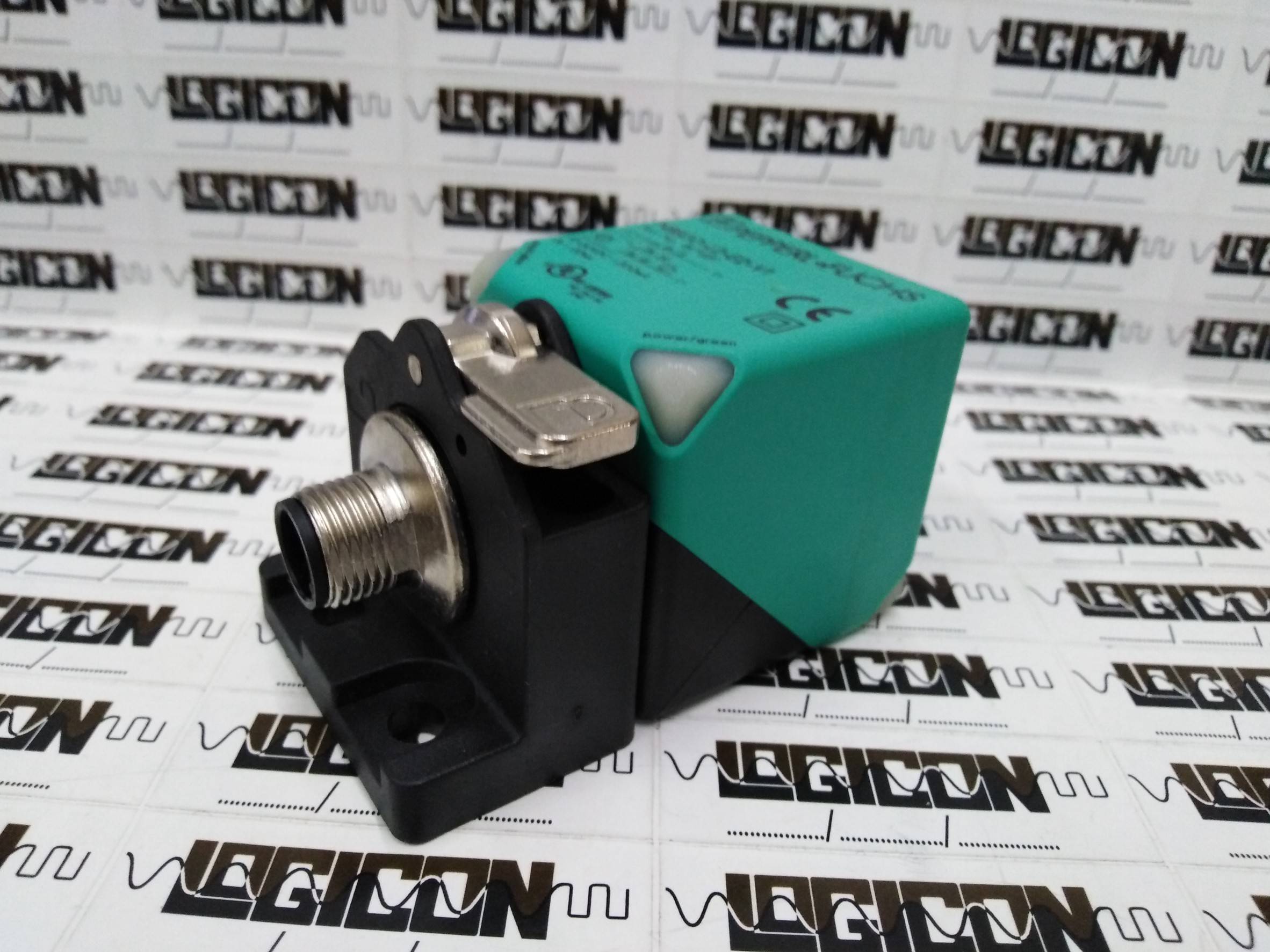

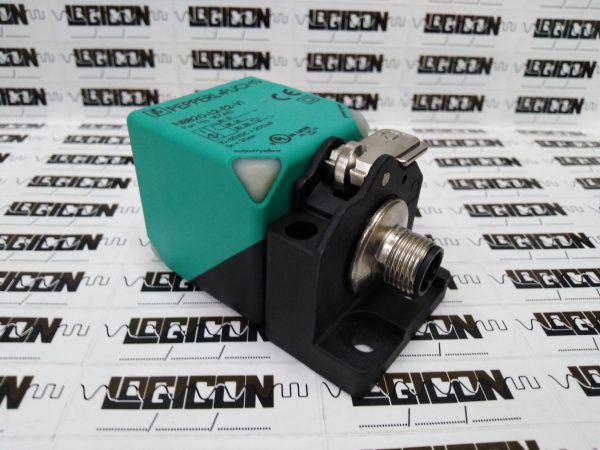

NBB20-L2-E2-V1 PEPPERL+FUCHS
PEPPERL+FUCHS
NBB20-L2-E2-V1
- Sensor head bidirectional and rotatable
- 20 mm flush
- 3-wire DC
- Quick mounting bracket
- 4-way LED indicato
Description
General specifications
| Switching function | Normally open (NO) |
| Output type | PNP |
| Rated operating distance | 20 mm |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 … 16.2 mm |
| Actual operating distance | 18 … 22 mm |
| Reduction factor rAl | 0.33 |
| Reduction factor rCu | 0.31 |
| Reduction factor r304 | 0.74 |
| Reduction factor rBrass | 0.41 |
| Output type | 3-wire |
|
Nominal ratings |
|
| Operating voltage | 10 … 30 V DC |
| Switching frequency | 0 … 440 Hz |
| Hysteresis | typ. 5 % |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2 V |
| Operating current | 0 … 200 mA |
| Off-state current | 0 … 0.5 mA |
| No-load supply current | ≤ 20 mA |
| Time delay before availability | 80 ms |
| Operating voltage indicator | LED, green |
| Switching state indicator | LED, yellow |
|
Functional safety related parameters |
|
| MTTFd | 1460 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
|
Compliance with standards and directives |
| Standard conformity | |
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 |
|
Approvals and certificates |
|
| EAC conformity | TR CU 020/2011 |
| Protection class | II |
| Rated insulation voltage | 253 V |
| Rated impulse withstand voltage | 4000 V |
| UL approval | cULus Listed, General Purpose |
| CCC approva | CCC approval / marking not required for products rated ≤36 V |
|
Ambient conditions |
|
| Ambient temperature | -25 … 85 °C (-13 … 185 °F) |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) |
|
Mechanical specifications |
|
| Connection type | Connector plug M12 x 1 , 4-pin |
| Housing material | PA |
| Sensing face | PA |
| Degree of protection | IP69K |
| Mass | 130 g |
