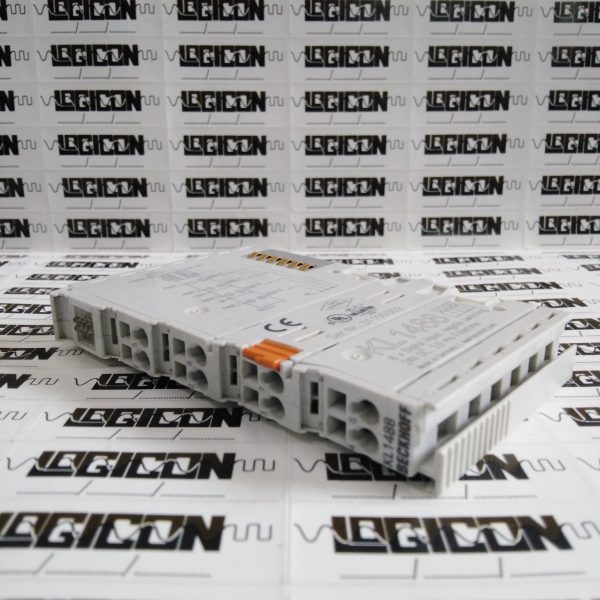

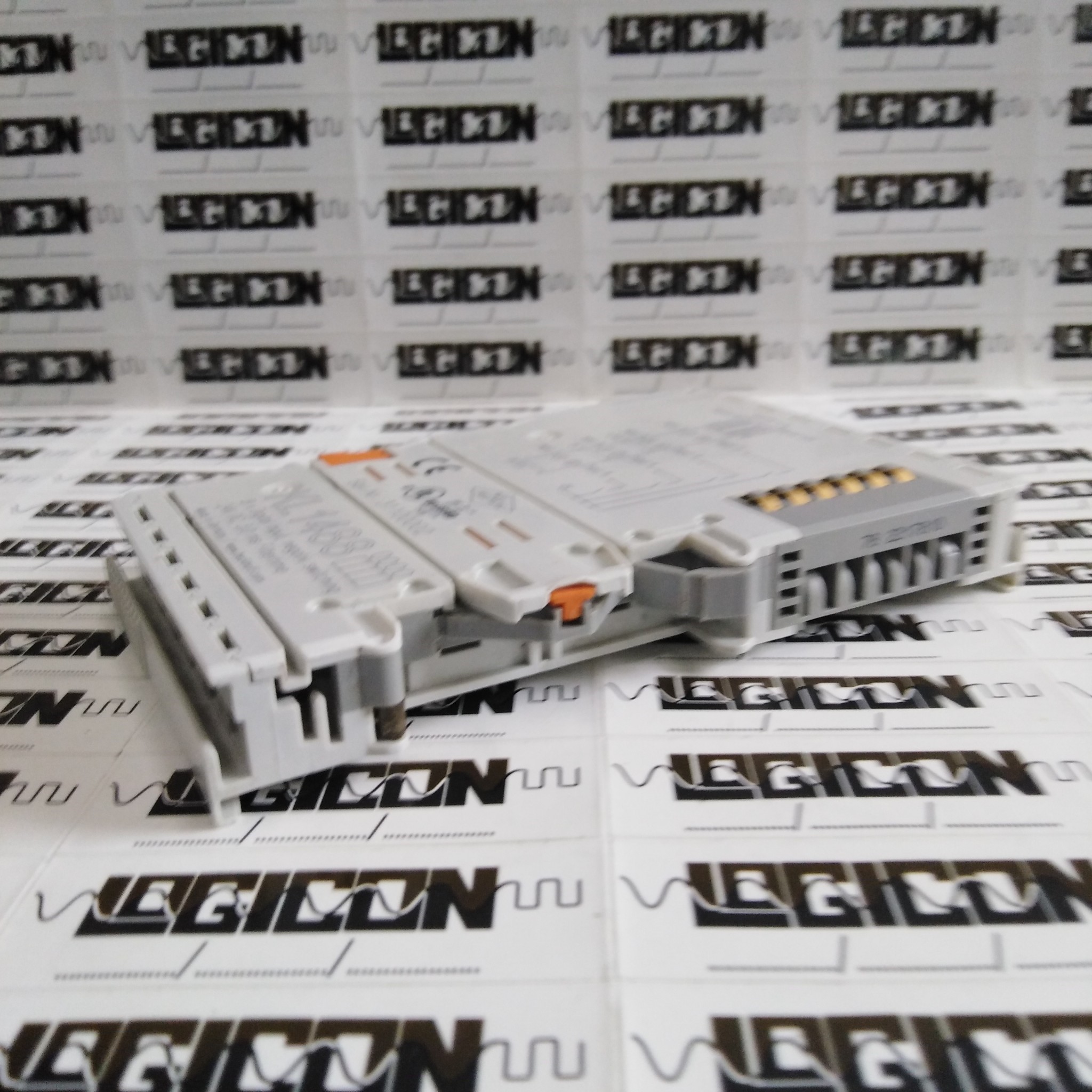

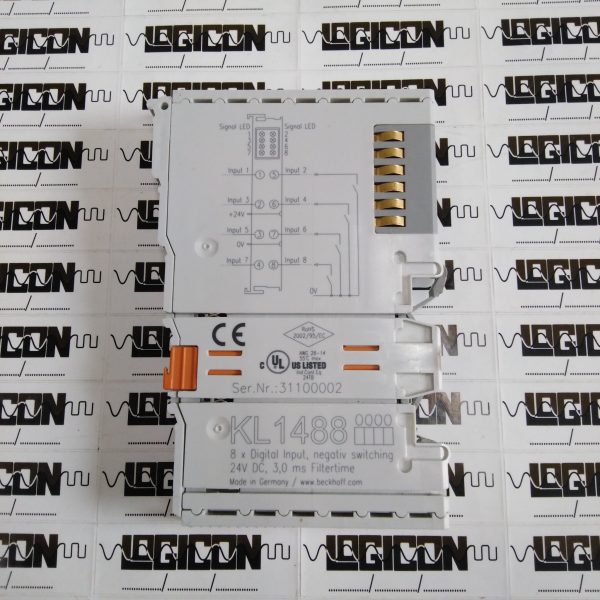

KL1488 Digital input (EC-0152)
BACKHOFF KL1488
8-channel digital input terminal 24 V DC
The digital input terminal KL1488 (negative switching) acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the higher-level automation unit. The Bus Terminal contains eight channels which indicate their signal state by means of light emitting diodes. The KL1488 is particularly suitable for space-saving use in control cabinets. By using the single-ended connection technique, a multi-channel sensor can be connected in the smallest space with a minimum amount of wiring. The power contacts are looped through. For the KL1488, the reference point for all inputs is the 24 V power contact.
Description
| Technical data | KL1488 |
|---|---|
| Connection technology | 1-wire |
| Specification | negative switching |
| Number of inputs | 8 |
| Nominal voltage | 24 V DC (-15 %/+20 %) |
| “0“ signal voltage | 18…30 V |
| “1“ signal voltage | 0…7 V |
| “0“ signal current | – |
| “1“ signal current | typ. 3 mA |
| Input filter | typ. 3.0 ms |
| Current consumption K-bus | typ. 5 mA |
| Current consumption power contacts | typ. 2 mA + load |
| Electrical isolation | 500 V (K-bus/field potential) |
| Bit width in the process image | 8 inputs |
| Configuration | no address or configuration setting |
| Weight | approx. 55 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Pluggable wiring | for all KSxxxx Bus Terminals |
| Approvals | CE, UL, Ex |
